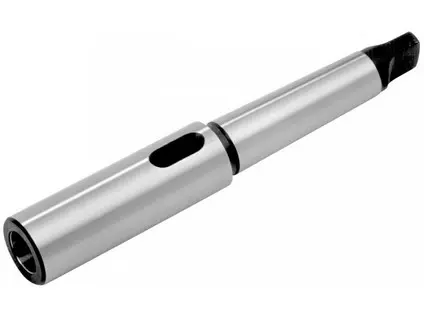

Morse taper sleeves extended CSN241245

Morse taper sleeves for clamping tools with a Morse taper shank to the machine spindle.

Vyrobeno dle normy ČSN241245

Your price	from 517,00 Kč
Your price without VAT	from 427,27 Kč

In stock according to variants

Objednací číslo	Mk1	Mk2	d₁ mm	d₂ mm	d mm	L mm	l mm	Hmotnost kg/ks
SM-D450101F000S	1	1	12,065	12,065	20	145	80	0,19
SM-D450102F000S	1	2	12,065	17,780	30	160	80	0,40
SM-D450201F000S	2	1	17,780	12,065	20	160	80	0,25
SM-D450202F000S	2	2	17,780	17,780	30	180	100	0,35
SM-D450203F000S	2	3	17,780	23,825	36	200	120	0,64
SM-D450301F000S	3	1	23,825	12,065	20	175	76	0,50
SM-D450302F000S	3	2	23,825	17,780	30	194	95	0,65
SM-D450303F000S	3	3	23,825	23,825	36	240	141	0,80
SM-D450304F000S	3	4	23,825	31,267	48	240	141	1,70
SM-D450401F000S	4	1	31,267	12,065	20	205	81	0,80
SM-D450402F000S	4	2	31,267	17,780	30	215	91	0,91
SM-D450403F000S	4	3	31,267	23,825	36	260	136	1,15
SM-D450404F000S	4	4	31,267	31,267	48	280	156	1,95
SM-D450405F000S	4	5	31,267	44,399	63	300	176	3,44
SM-D450501F000S	5	1	44,399	12,065	20	235	80	1,90
SM-D450502F000S	5	2	44,399	17,780	30	250	95	2,00
SM-D450503F000S	5	3	44,399	23,825	36	268	112	2,05
SM-D450504F000S	5	4	44,399	31,267	48	300	145	2,80
SM-D450505F000S	5	5	44,399	44,399	63	335	172	4,18
SM-D450604F000S	6	4	63,348	31,267	48	355	137	5,30
SM-D450605F000S	6	5	63,348	44,399	63	390	172	6,61
